- Protection class IP54 for protection against dust and rain
- Automatic, motorised horizontal and vertical alignment, with manual tilt setting possible
- Scanning function with adjustable scanning angle
- Tilt alarm function, as a result of shock or violation of the original instrument position, after which the instrument must be restarted manually
- Tilt, rotation speed, scanning angle as well as rotation of the scanning area in both directions can be adjusted using the remote control
- Laser receiver (detector) with two illuminated displays, acoustic signal control, switchable accuracy - fine or coarse
- Laser source: class 2M laser diode, <1 mW, 635 nm
- Speed: 0-60-120-300-600 rpm

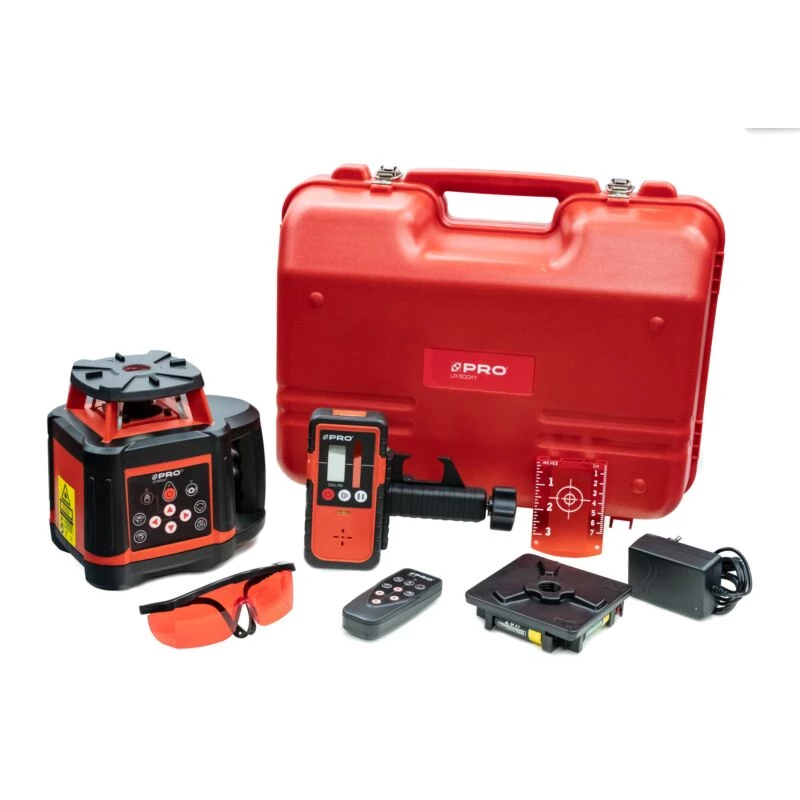

- Included: LR-500XY laser; carrying case; remote control; laser receiver (detector) with holder; reflective target; laser goggles; Ni-MH rechargeable battery; charger; alkaline battery basket; instruction manual
- Scanning angle: 0° / 10° / 45° / 90° / 180°
- Self-levelling range: ±5°

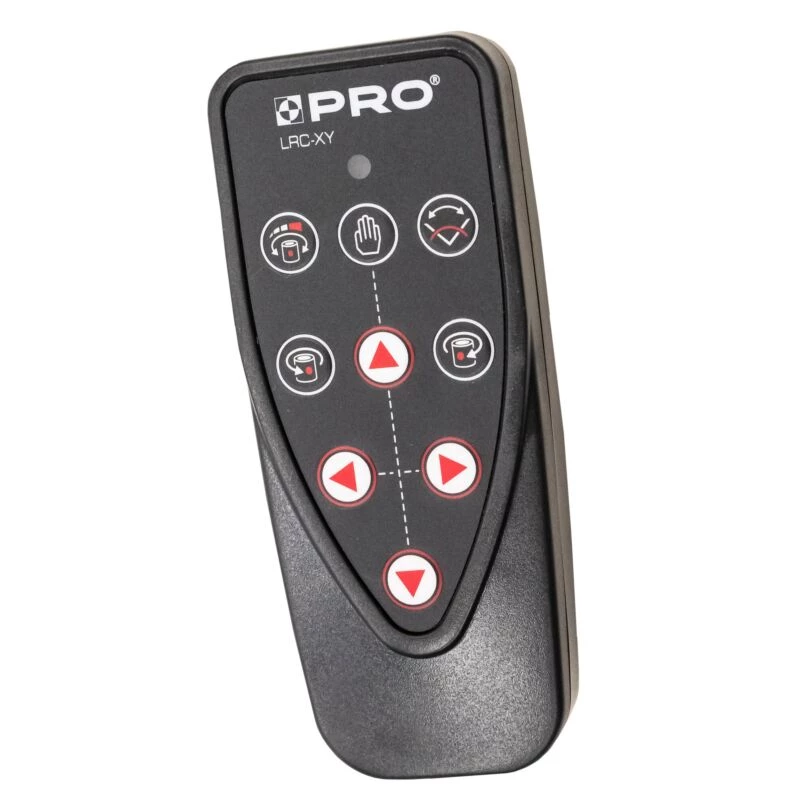

- Remote control (range): 30 m (infrared)
- Power supply: Ni-MH rechargeable battery
- Battery life: approx. 18 h
- Levelling angle: 360°

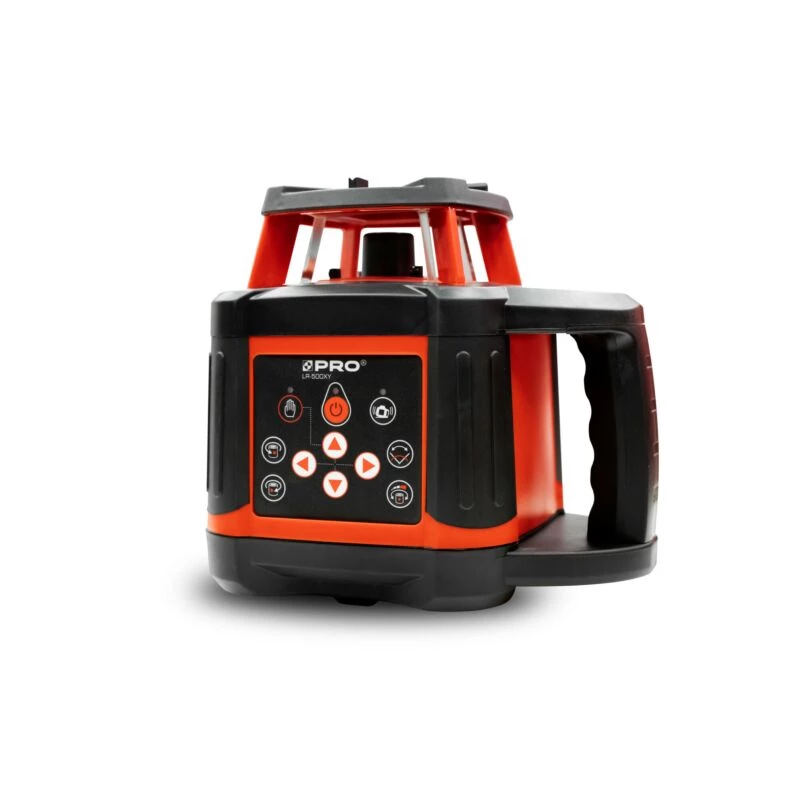

PRO ROTARY LASER LR-500XY RED BEAM
| Brand: | PRO |
| Product code: | 3-01-06-L1-098 PRO-L1098 |
| In stock: | 0 pcs |
- Colour of beam - red
- Area of operation: 250 m
- Horizontal accuracy: ±1.0 mm per 10 m
- Plumb bob accuracy: ±1.0 mm per 1.5 m
- For indoor and outdoor use
Product description
| Brand: | PRO |
| Product code: | 3-01-06-L1-098 PRO-L1098 |
| Availability: | Waiting for delivery - please contact us |
| Weight | 0 |
|
Catalogue number |
PRO-L1098 |
|
Protection class IP |
IP-54 |
|
Power supply |
NI-MH rechargeable battery |
|
Laser beam colour |
Red |
|
Accuracy |
± 1.0mm at 10m |
|
Range (max) |
250m |
|
Operating temperature |
-10° C - 40° C |
|
Storage temperature |
-15° C - 60° C |
|
Vertical accuracy |
± 1.0mm per 10m |
|
Horizontal accuracy |
± 1.0mm at 10m |
|
Laser source |
Class 2M laser diode, < 1 mW 635 nm |
|
Rotational speed |
0-60-120-300-600 rpm |
|
Kit |
Yes |
|
Scanning angle |
10°/45°/90°/180° |
|
Self-levelling range |
± 5° |
|
Remote control (range) |
30 m |
|
Battery life |
approx. 18 h |
|
Levelling angle |
360° |
|
Lower point accuracy |
Lower point accuracy ±1.0mm/1.5m |
