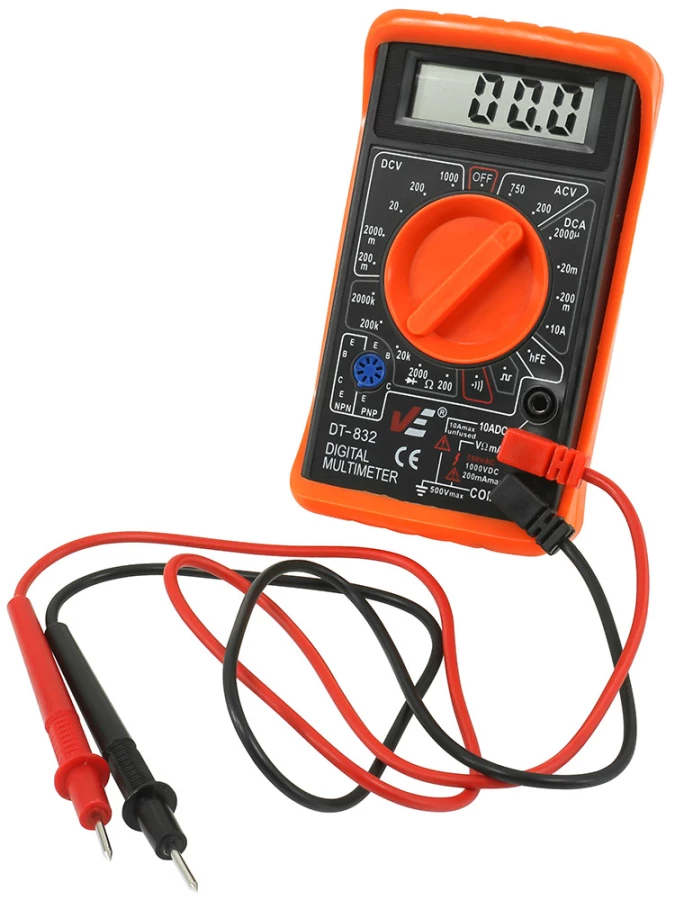

The Verke DT832 digital multimeter has been designed in accordance with EN61010 and features a CAT I measurement (overvoltage) category and second class protection. This instrument performs measurements of DC and AC voltage, DC current, resistance, continuity (audible signal), diode test and h FE (transistor EC DC gain). The meter generates a sinusoidal or rectangular test signal of 50 Hz frequency and 5 V p-p level.
It is a meter with a 3 1/2 digit display and a maximum result of 1999.
ATTENTION: it is forbidden to measure electrical values exceeding the maximum measuring range of the meter.
Product description
| Brand: | Verke |
| Product code: | V86286 |
| Availability: | Waiting for delivery - please contact us |
| Weight | 0 |
Technical data:
model: Verke V86286
display: LCD, 3 1/2 digits, max. 1999
power supply: 9 V, batteries type 6F22 (6RL61)
AC voltage measurement: A.C. 0 - 750 V
DC voltage measurement: D.C. 0 - 1000 V
DC current measurement: D.C. 0 - 10 A
resistance measurement: 0 - 2 MΩ
diode test: IF 1.5mA, UR 2.4 V
h FE (DC gain in EC transistor circuit): 1 - 1000
circuit continuity test: ~ 0 - 70 Ω
operating temperature: 0 ̊C to 40 ̊C, humidity less than 75 %
storage temperature: -10 ̊C to 50 ̊C, humidity less than 85 %
dimensions: 126 x 70 x 24 mm
weight: 170 g
